'50s Vintage Telecaster® Blackguard Style Bobbin Kit

Hover over image to zoom

  • Vintage Telecaster Style Bobbin Kit, Telecaster Bridge Pickup
  • Vintage Telecaster Style Bobbin Kit, Telecaster Neck Pickup
  • Image 3
  • Telecaster Neck Cover
  • Telecaster Neck Cover
  • Telecaster Neck Cover
  • Telecaster Pickup Product Box with Custom Foam Inserts
  • Age Polepieces
  • Engraving
Tone Kraft
$24.54
Availability:
Usually ships in 24 hours.
Shipping:
Calculated at checkout

 Product Description

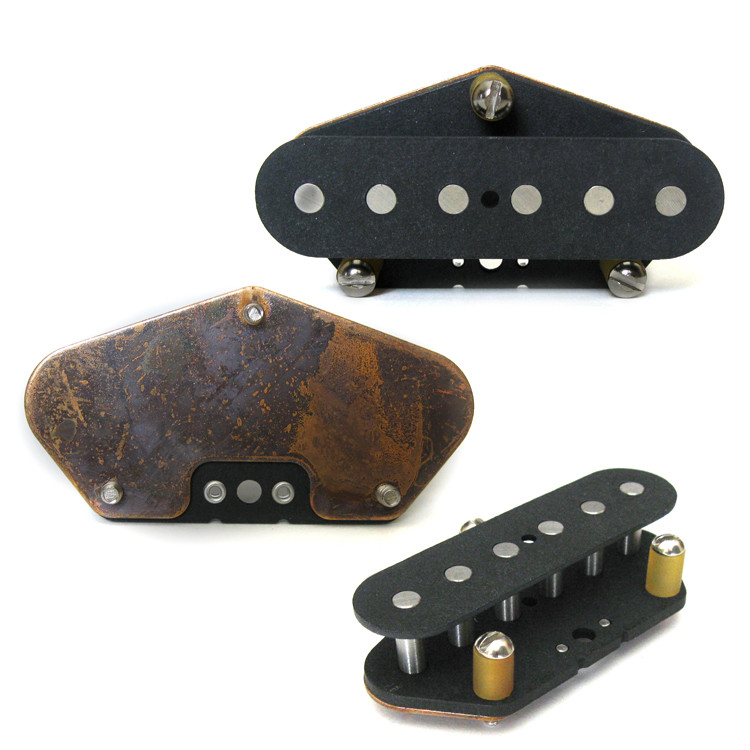

This kit includes (1) Bridge and (1) Neck '50s Vintage Telecaster® Blackguard style assembled pickup bobbins. Both pickup bobbins are pre-assembled and ready for winding. (Magnet wire is NOT included in this kit, and must be purchased seperately). Played by guitar greats from James Burton to Steve Cropper. Optional matte black box with custom foam inserts available.



Bridge Pickup Bobbin Includes:

  • Vintage correct black vulcanized fiber flat-work. (bottom flatwork 0.093", top flatwork 0.062")
  • Eyelets made specifically for soldering (eyelet lip is on the bottom side only providing smooth, snag-free winding)
  • 0.187" Flush mounted Alnico sand cast polepiece magnets. Your choice of Alnico 2, 3 or 5
  • E: 0.630  A: 0.630  D: 0.630  G: 0.630  B: 0.630  e: 0.630
  • Copper clad steel bridge pickup plate
  • Pickup Height Tension (rubber tubing)
  • (3) Nickel plated pickup mounting screws
  • Vintage style 22awg cloth push-back wire (1 ft of each black and yellow)
  • (8) ft 8 ply white cotton string

 Neck Pickup Bobbin Includes:

  • Vintage correct black vulcanized fiber flat-work.(bottom flat work optional 0.093" or 0.062", top flat work 0.062)
  • Eyelets made specifically for soldering (eyelet lip is on the bottom side only providing smooth, snag-free winding)
  • 0.187" Flush mounted Alnico sand cast polepiece magnets. Your choice of Alnico 2, 3 or 5
  • E: 0.671 A: 0.671  D: 0.671  G: 0.671  B: 0.671  e: 0.671
  • Pickup Height Tension (rubber tubing)
  • (2) Nickel plated pickup mounting screws
  • Vintage style 22awg cloth push-back wire (1 ft of each black and white)
  • *Neck pickup cover is optional


  • Engraving  Add a real professional touch to your pickups by engraving. Have your logo or custom text engraved on each bobbin (requires art work or font file to be used). Click Here for more details.
  • Polepiece Aging   Give your pickups that real vintage vibe and add polepiece aging.  note: magnet aging is strictly cosmetic, no heating or other methods are used.

Payments:


Bulk Pricing:

  • Buy 5-9 sets and get 5% off
  • Buy 10 or more sets and get 10% off











(The term “Telecaster”® is a registered trademark of Fender Musical Instruments Incorporated. Tone Kraft is in no way affiliated with Fender Musical Instruments.)



 Find Similar Products by Category

 Product Reviews

  1. Quality parts

    Posted by Unknown on 23rd Sep 2017

    I buy all my kits here because of the quality and service.


  2. Finally, an Esquire pickup set

    Posted by Scott K on 8th Apr 2017

    By far the best and most consistent Tele pickup kit available! I tried the others before Tone Kraft came on the scene and now I only use TK kits. Internet "wisdom" says Alnico 3 is too bright and harsh. Well, maybe it's my superior winding technique (smirk), but I have never had that problem with the TK kits.


  3. First class supplies allow me to make first class product!

    Posted by JD Custom Pickups on 18th Sep 2015

    I ordered a set of these pickups some time back for Telecaster-type project that I was working on at the time. I was very, very impressed with the quality and care that goes into these bobbins, as well as their accessories, and the packaging.

    The only very minor gripe I have is that I'd prefer phillips over slotted screws, but that's a pretty tiny detail (actually, I'd like allen-head screws even better, but that's not exactly vintage!)

    The pickups have been in an old Fender of mine for some time, but I wanted to wait until I had them in the guitar they were intended for until I wrote this review.

    I'll get you decide on how they came out...


    https://soundcloud.com/ron-daniels-3/if-it-makes-you-happy-baby-boom?in=ron-daniels-3/sets/baby-boom-tele-pickups


    This is through my mid-'80's solid state amp.... I've played it through a Princeton and a Blues Deluxe. It sounds even better through them!

    Enjoy the tone (and sorry about my playing!).


  4. Blown Away

    Posted by Glen on 7th Jun 2015

    I have started to become interested in winding pickups. I had found all sorts of sites selling kits and flatwork. In all honesty, price was a motivating factor here, with the cost of this kit being only slightly more than some places charged for a single pickup I thought I would take a chance.

    What I received, completely blew me away. The product arrived quite fast and was packaged well. The box with the precision cut foam insert was a very nice way to present the package. The wiring and components were packaged very neatly in their own sealed bag.

    The pickup bobbins are very well done, no scratches or nicks. The pole pieces were already magnetized as well, which is absolutely wonderful as this is one less step in the process of winding the pickups.

    Overall, I was thoroughly impressed with this product, from the fast ship time, to the very fair cost of shipping, to the care and attention to the product itself, just superb.


  5. Very nice parts!

    Posted by Hugh Griffin on 6th Apr 2015

    The pickup kit arrived and was in a very high quality box. Nice start.... Opened the box and found parts that exceeded my expectations. I can't wait to wind up my tele bridge and neck pickups!!!


  6. Great pickup set!

    Posted by Hugh Griffin on 6th Apr 2015

    The components are all first rate and nicely finished. The delivered product exceeded my expectations. Buy with confidence!


  7. Most complete and best price

    Posted by Peter Ostlund on 29th Oct 2014

    My parts from Tone-Kraft are of the best quality. Currently, the majority of Eastgrove strat and tele style pickups are made with their parts. The ability to customize specifications removes much of the need for me to get individual custom parts from other companies to assemble my own bobbins. I can see using Tone-Kraft for quite some time. All my customers have loved the pups I have made with their parts.
