43 awg Poly Nylon Copper Magnet Wire RED 1.0 lb (66140 ft)

Hover over image to zoom

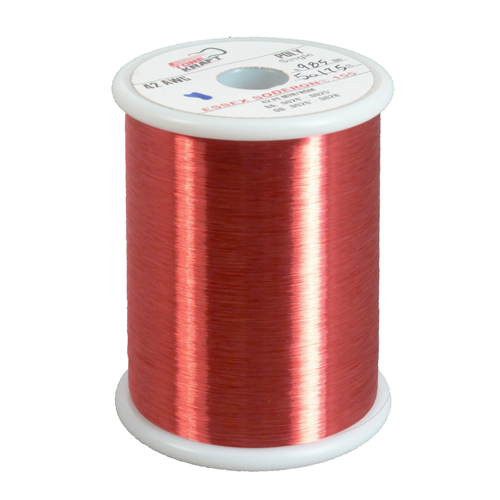

  • 42 AWG Poly Magnet Wire
$28.60
Availability:
Usually ships in 24 hours
Shipping:
Calculated at checkout

 Product Description

DESCRIPTION

ELEKTRISOLA® PN155 Polyurethane Nylon Magnet Wire / winding wire is an excellent choice for fine wire applications requiring a Class 155 insulation with soldering capabilities. The product's unique solder stripping properties along with the addition of the nylon topcoat enables ELEKTRISOLA® PN155 to be an ideal choice for most winding applications and requirements. The film lends itself to the precise process control required in manufacturing many electrical / electronic devices.. This wire is used in winding guitar pickups.

SOLDERABILITY

ELEKTRISOLA® PN155 magnet wire has excellent soldering properties without the excessive buildup of enamel residue associated with other solderable type resin coatings.

WINDABILITY

Flexibility and adhesion properties of the ELEKTRISOLA® PN155 magnet wire film, because of its tough nylon topcoat, exceeds most automatic winding applications and requirements.

ELECTRICAL

ELEKTRISOLA® PN155 magnet wire insulation exhibits high dielectric strength.



INSULATION INFORMATION

Temperature Class: 155° C
Insulation Type:
 Polyurethane Nylon
BA: .0021"-.0022" O.D.: .0023"-.0024"
NEMA Specification: MW 80C
Federal Specification: JW1177/42
IEC Specification: NONE
Insulation Characteristics:
Flexibility and adhesion properties of the ELEKTRISOLA® PN155 magnet wire film, because of its tough nylon topcoat, exceeds most automatic winding applications and requirements. ELEKTRISOLA® PN155 magnet wire insulation exhibits high dielectric strength.
General Applications:
Guitar pickups coils, bobbin wound and paper section coil,  small motors, solenoids, timers and clock coils

Conductor: Copper

Size: 43 awg

Actual Weight: 1.00 lbs

Length: 66140 feet

Type: Polyurethane Nylon Magnet Wire
